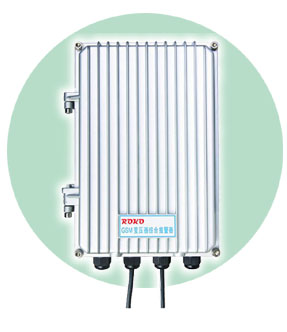

GSM power transformer integrated alarm
Product General

BZB-6 series GSM power transformer integrated alarm main power transformer for the burglar alarm and alarm monitoring operating parameters. When the power transformer by the theft occurred or when the allowed level during the operation parameters, alarm information through the GSM mobile communications network platform to send messages to the relevant control centre staff and Electric Power Bureau of computer terminals, promptly notify the relevant personnel check to avoid further incidents Expansion of causing unnecessary economic losses.
GSM power transformer integrated alarm
Main Features

  • Alarm: a three line of defense, were not at the same time three-phase power outage alarm, tilt alarm, anti-theft alarm lines open or short circuit;
  • Alarm ontology open alarm;
  • Pirates when police ringing alarm sound, the alarm automatically dial telephone, on-site monitoring and voice message;
  • Over-temperature alarm, ultra-Trip;
  • Under-voltage, ultra-pressure warning;
  • Overload alarm;
  • Low oil-alarm;
  • Transformer leakage, multi-core grounding alarm;
  • Multi-Alarm Interface: gas can then relay, the pressure release valve, metering Guimen switch, zero-sequence transformer, grounding fault indicator;
  • Regular inspection;
  • Remote security and Chefang;
  • Remote tripping and closing;
  • Alarm set up a number of telephone numbers;
  • Built-in high-capacity maintenance-free batteries;
  • Solar cells interface;
  • Anti-destruction hidden antenna;
  • Internal automatic heating function;
  • All sealed aluminum die-casting shell;
  • Two-way communication, alarm level operating parameters set by the user;
  • Siemens dual-band GSM module, Philips industrial MCU circuit.
Note: The above transformer alarm function can be the actual needs of users, any combination to meet the needs of different users.

Technical parameters
Input Voltage ~380V/220V 50/60Hz ( 3-phase 4-wire )
Working Power ~220V±20% 50/60Hz
Backup power supply 12V 7Ah Sealed maintenance-free batteries
Power 8VA
Communication Network GSM 900/1800M
The use of ambient temperature -20~55℃
Accuracy 1
Voltage range 0~400V
Current measurement range 0~9999A
The temperature range 0~125℃
Linkage relay contacts 7A/250V AC
Level of security IP65
Dimension 200×310×85mm ( W × H × T )
Sensor Lead Length 2m ( For special needs, in order raised )

Key Features
Model Code Function
BZB6 NULL

3 line of the anti-theft alarm, the body open alarm, alarm sound, sound monitoring, multi-alarm interface, regular inspection,
Chefang security, switching long-distance trip, automatic heating, telephone number set up

T Increase in temperature detection, over-temperature alarm, over-temperature Trip
I Three-phase increase in load current detection, overload alarm
U Three-phase increase in voltage detection, undervoltage alarm, overpressure alarm
P Reduce the increase in the oil-alarm
C Increase the transformer leakage alarm, multi-core grounding alarm
W These include all the features
For example: BZB-6TI expressed alarm with basic functions, is attached to the police and the current temperature alarm function

 Users set of parameters
Click here to show the user parameters

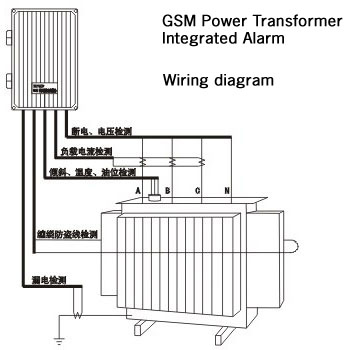

Installation steps

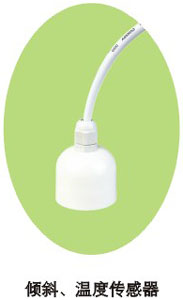

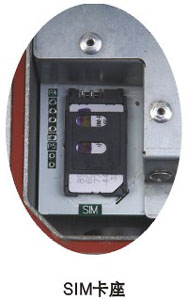

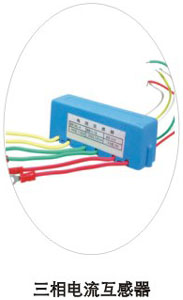

SIM card seat Three-phase current transformer Tilt, temperature sensors

  • 2.60-hand with the alarm system will cover 1.40 release of the four screws, open the shell, the GSM mobile communications SIM card inserted into the socket (with card alarm power should be switched off).
  • The need to connect sensors and trip wire relay lead.
  • Push down the power switch "on" position, the indicator light flashes network can be normal work. Re-tighten the shell on the four screws.
  • The police are required to set up telephone numbers and alarm parameters.
  • Will be two panels installed alarm system installed in the back, and then U-shaped panels will be installed alarm vertical fixed transformer in the vicinity of the pole or the appropriate location.
  • Power lines will be connected to the transformer sub-output, fixed a good variety of sensors, evacuation work.
